Two variants for different corrosion environments

Slide
NanoCorro Lite Coating
YNT-CO-301
Slide
Core Functions & Advantages

● Corrosion Resistance: Forms a protective barrier to effectively block corrosive agents.

● Hydrophobic & Anti-Fouling: Smooth, water-repellent surface prevents dust and stains, enabling self-cleaning.

● Fire Retardant: Provides flame resistance to enhance substrate safety.

● Fast Drying: Surface dry in ~4h; full cure in ~24h.

Applications

Where to Use: Aerospace equipment, water treatment systems, metallurgical machinery, and chemical reactors.

How to Apply: Brush or spray.

Slide

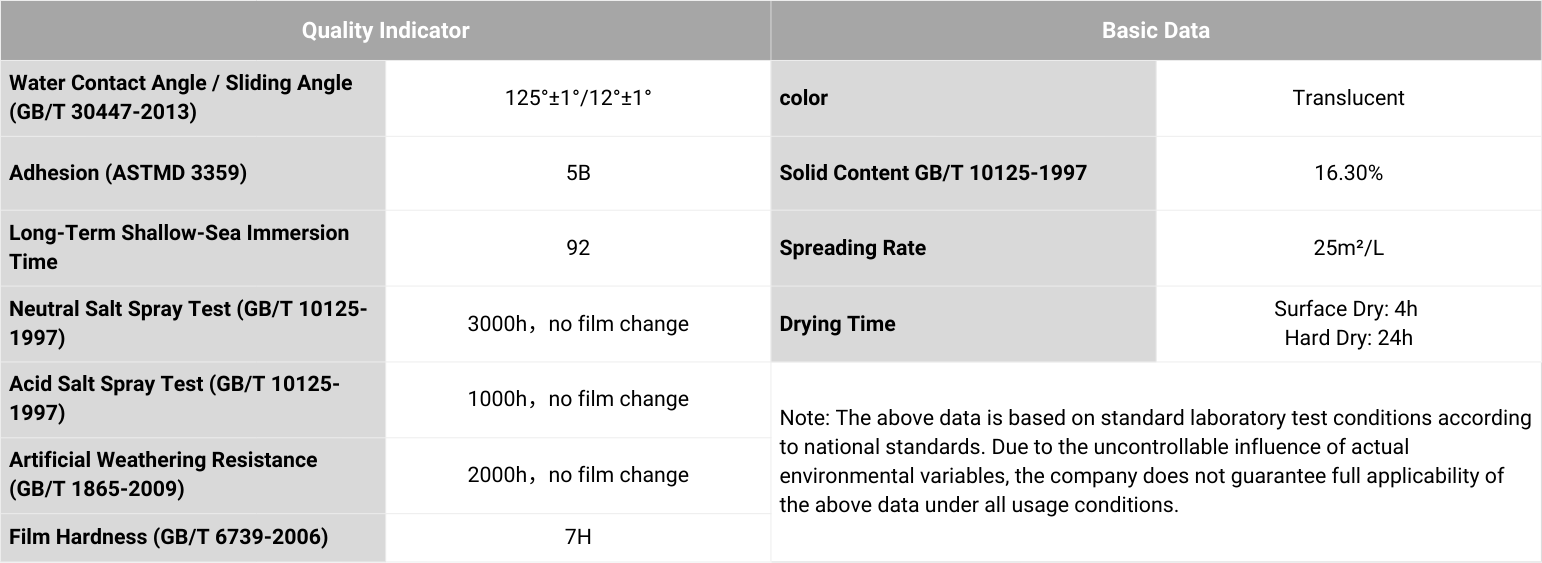

Performance & Testing

Quality Indicators

Basic Data

Water / Sliding Contact Angle

GB/T 30447-2013

125° ±1° / 12° ±1°

Appearance

Translucent

Adhesion

ASTMD3359

5B

Solid Content

GB/T 10125-1997

16.3%

Long-Term Shallow Sea Immersion

92

Coverage

25 m²/L

Neutral Salt Spray Test

GB/T 10125-1997

3000 h, no film change

Drying Time

Surface Dry 4 h

Full Cure 24 h

Acidic Salt Spray Test

GB/T 10125-1997

1000 h, no film change

Artificial Weathering Resistance

GB/T 1865-2009

2000 h, no film change

Coating Hardness

GB/T 6739-2006

7H

Note: The above data were obtained under laboratory conditions according to Chinese national standards. Due to uncontrollable environmental factors during actual use, no warranty is given regarding reasonable deviations.

Slide
NanoCorro Heavy Coating
YNT-CO-302
Slide
Core Functions & Advantages

● Corrosion Resistance: Forms a strong protective barrier that effectively blocks liquid intrusion, delaying corrosion and aging of marine equipment and facilities.

● Bio-Inspired & Anti-Fouling: Mimics biological effects to create a protective air layer, providing excellent water repellency, ultra-smooth surfaces, and antibacterial properties.

● Biodegradable Lactic Acid Resin: Forms a smooth film that gradually degrades during vessel operation, maintaining surface cleanliness and reducing marine organism adhesion.

● Fire & Safety Protection: Combines hydrophobic, anti-fouling, and fire-retardant functions for comprehensive surface protection.

Applications

Where to Use: Aerospace, water treatment, metallurgical equipment, and chemical reactors.

How to Apply: Brush or spray.

Slide

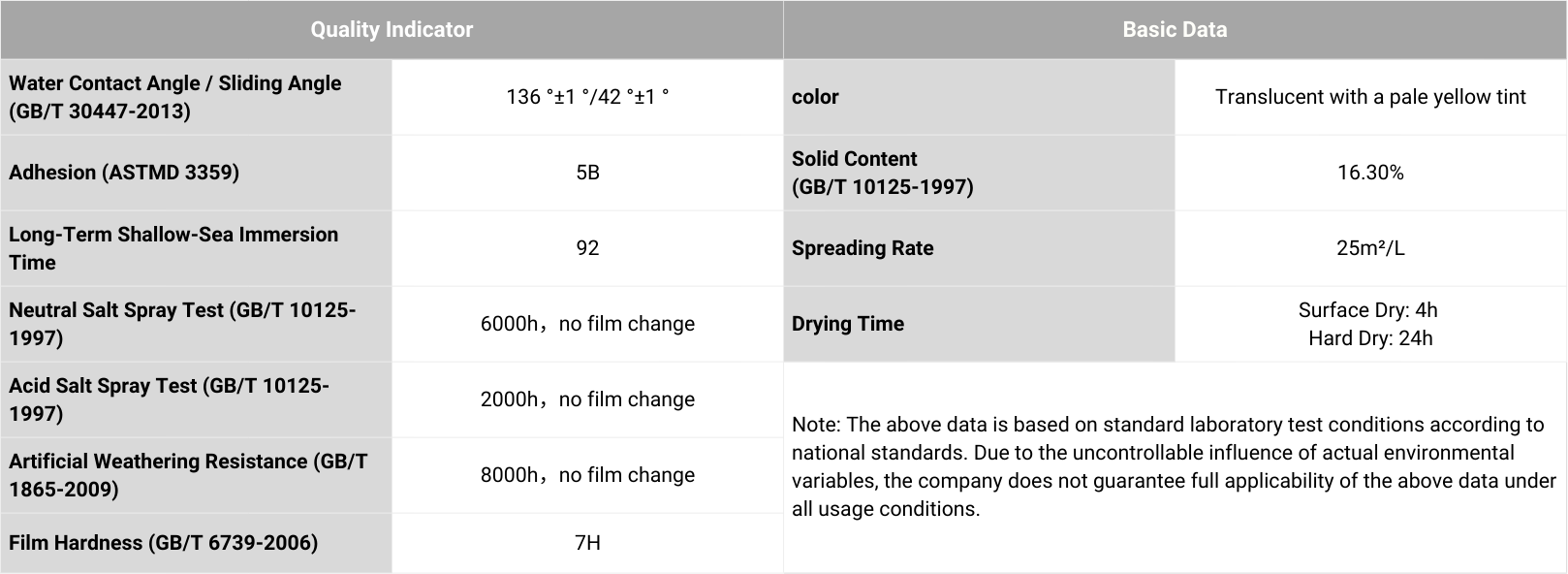

Performance & Testing

Quality Indicators

Basic Data

Water / Sliding Contact Angle

GB/T 30447-2013

136° ±1° / 42° ±1°

Appearance

Translucent

Adhesion

ASTMD3359

5B

Solid Content

GB/T 10125-1997

16.3%

Long-Term Shallow Sea Immersion

92

Coverage

25 m²/L

Neutral Salt Spray Test

GB/T 10125-1997

6000 h, no film change

Drying Time

Surface Dry 4 h

Full Cure 18 h

Acidic Salt Spray Test

GB/T 10125-1997

2000 h, no film change

Artificial Weathering Resistance

GB/T 1865-2009

8000 h, no film change

Coating Hardness

GB/T 6739-2006

7H

Note: The above data were obtained under laboratory conditions according to Chinese national standards. Due to uncontrollable environmental factors during actual use, no warranty is given regarding reasonable deviations.
